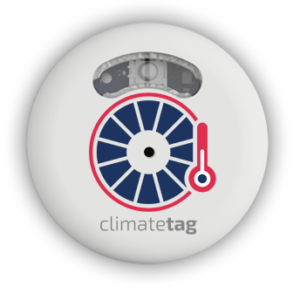

ClimateTag

The ClimateTag is ready to provide you data for the environment around you!

The Mantis ClimateTag is ready to provide you data for the environment around you! This sensors provides your data related to the temperature, barometric pressure, relative humidity, UV light, and ambient light.

Open Guide

  1. SPLASH PROOF ENCLOSURE
    Ruggedized design for use in both coldchain monitoring and support of stringent Ag-IOT outdoor environments.


  2. IOT/DSP ENGINE
    Powerful onboard SOC serves as both the sensor computation engine and low energy IOT connectivity.


  3. INERTIAL MEASUREMENT UNIT
    Measure shock and vibration in supply chain logistics operations. In the classroom setting, see Quick Start Guide for orientation based sensor data rates and battery saving features.


  4. VISIBLE LIGHT SENSOR
    Light Source Independent (400nm to 800nm) @ 16 Bit Resolution


  5. UV SENSOR
    Spectral Response (300nm to 380nm) @ 16 Bit Resolution


  6. HUMIDITY/TEMPERATURE
    Relative Humidity (14 Bit Resolution) with accuracy to (+2%RH). Ambient Temperature Sensors(-20C to 50C operational) with accuracy to (+0.3C)


  7. BAROMETER
    MEMS Pressure Sensor (260 to 1260hPa absolute pressure range).High Resolution 1 Pa RMS


  8. LITHIUM COIN CELL
    Inexpensive 2540 coin cell provides over a year of operation at 1 minute refresh rate.
  • Scratch ready
  • Free Mobile App
  • Measure shock and vibration
  • Light Source Independent
  • Variable reporting rates
  • Long battery life

Get More Information
